Temperature, min.-max. speed and hysteresis 1A

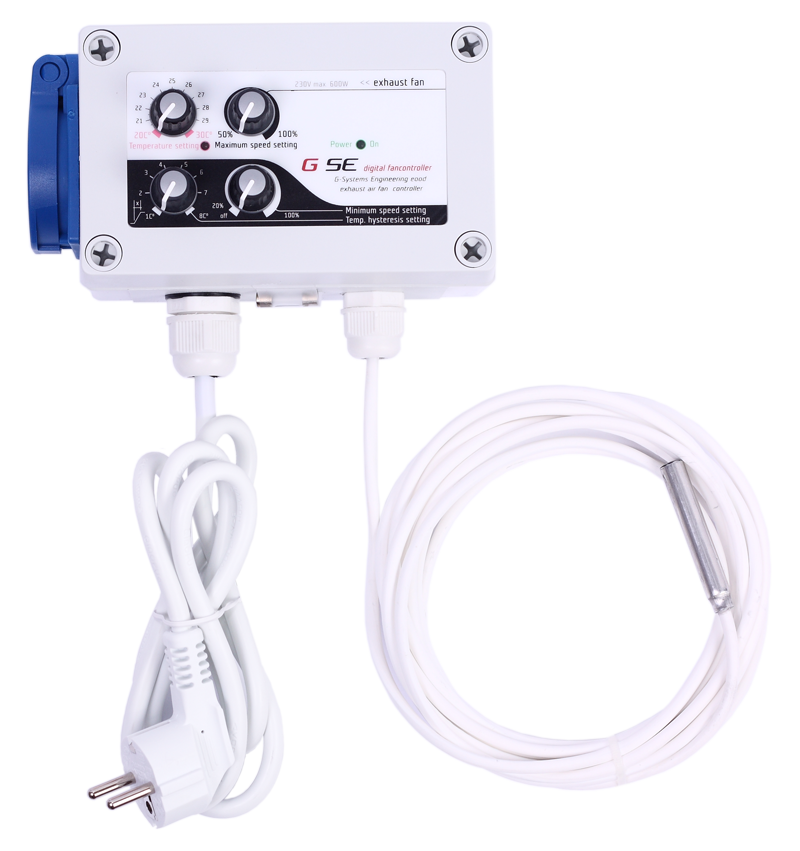

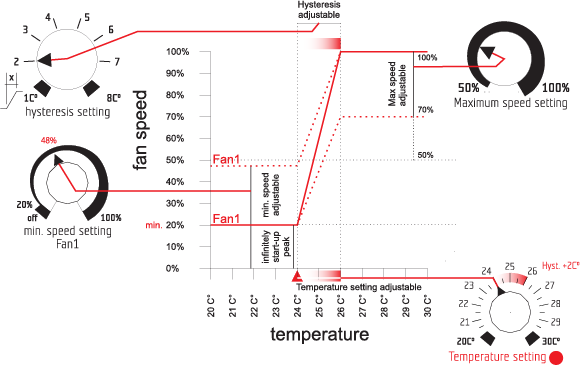

Temperature controller, minimum and maximum speed and hysteresis setting. This is a temperature dependent speed controller for rooms ventilated with one or more fans. The controller maintains a constant temperature, preventing the minimum speed from falling below the set one. It also does not allow the maximum set speed to be exceeded. Hysteresis defines temperature limits. Using this controller is very easy. It is enough to set the desired temperature, the maximum or minimum speed and the hysteresis through the four potentiometers. The controller arrives as a ready-to-use product. Najden fan controller with waterproof housing, contacts with protective covers and low voltage sensor, making it ideal for damp spaces. The sensor comes with a cable that is 4 meters long, but can be extended up to 50 meters. Specifications and technical data: Box: 130x80x70mm Controller: 160x100x90mm Designed for: 1A / 200W / TRIAC 1x16A Volts: 230V / 50HZ 5V digital sensor measuring temperatures from –55°C to +125°C (–67°F to +257°F) 0.5°C accuracy from –10°C to +85°C Protection class: IP54 Setting range: temperature: 20C° to 30C° Minimum speed: off, 20% to 100% Max speed: 100% to 50% Negative pressure: 100% to 50% Instructions for use PDF: Manual_GSE_fancontroller_universal_multilanguage [embed]https://www.youtube.com/watch?v=8cNVhCoJeQM&feature=youtu.be[/embed]
